  1. Reporting & Analytics

Collections & reporting labels

Was this helpful?

Note that these features will only work if the labels/collections are added to a workflow in Sandbox and that flow is deployed to Production. Data will not pull through for workflows in Sandbox.

What is a collection?

You can to any step in your workflow. These are grouped into data collections that can be tracked and visualized in your in the Clickatell Portal.

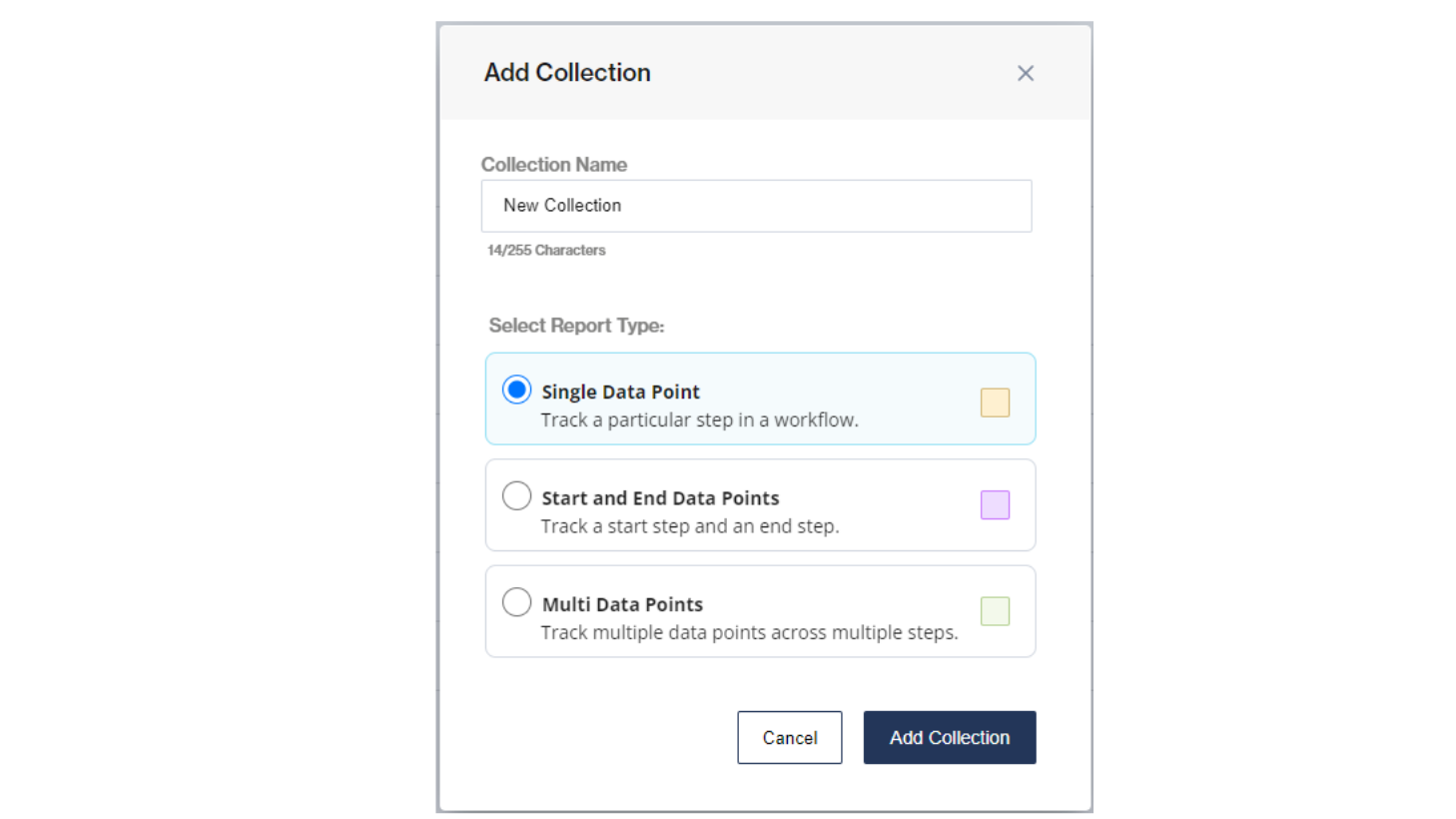

A collection can be one of three types:

  • Single Data Point: This is used when you want to track how a particular step in a flow is doing.

  • Start and End Data Points: This allows you to track a start step and an end step. Useful if you only want to track a particular start and end.

  • Multi Data Points: This allows you to track multiple data points in multiple steps.

Collections are created in the section or when adding a to a node.

What is a reporting label?

You can add a custom reporting label to any of the nodes used in your workflow.

A reporting label is a "tag" associated with a step (or collection of steps) in your workflow. It enables you to track metrics such as drop-offs, successful completions, and other end-states and gain valuable insight into your customers' behavior.

Although reporting labels are optional, data for a node is only logged for reporting if a label was entered and saved for the node.

Adding a reporting label

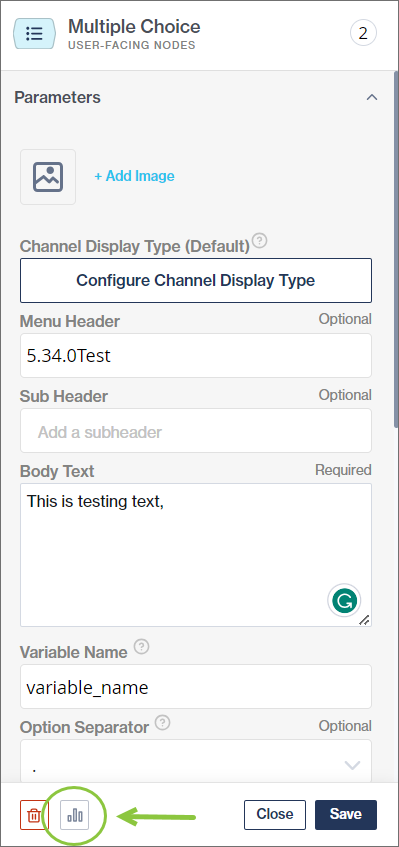

  1. When configuring a node, click the Analytics button.

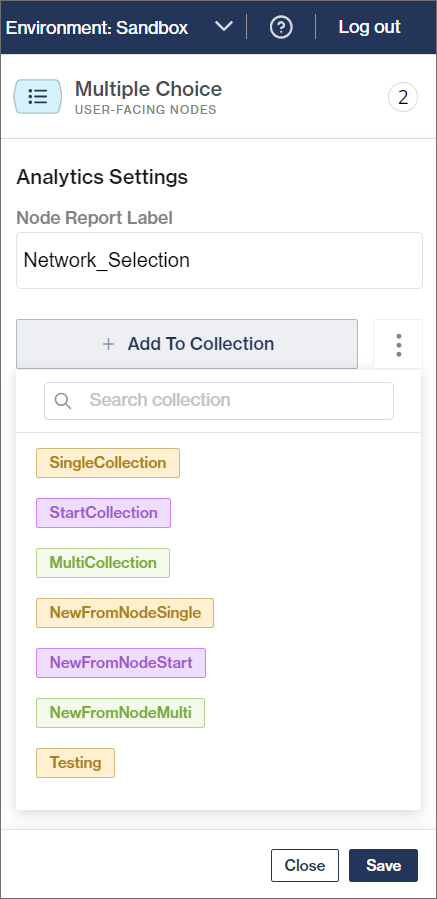

These labels (or "data markers") can be grouped into You can visualize these data collections in the in the Clickatell Portal.

Enter a for the node and add the step to a of data markers.

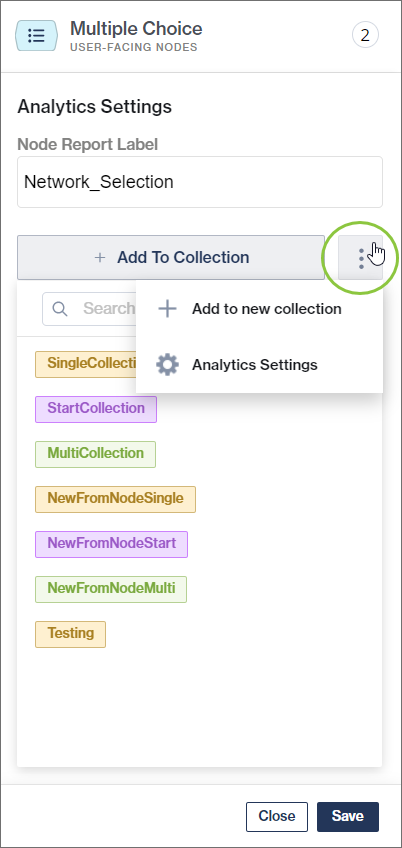

You can also add a new collection, or navigate to the page to manage your existing collections.

📊
