  1. Channel Capabilities
  2. Use WhatsApp with Chat Flow

WhatsApp Interactive Messages

Was this helpful?

When configuring the , , and node, you can select how you want to display the menu options to the customer using the modal.

For the WhatsApp channel, there are two types of interactive messages to select from:

  1. : Add a longer list with up to 10 options for users to select from.

  2. : Add up to 3 buttons, each presenting an option for the user to select.

To send interactive WhatsApp messages directly via One API, see the .

List Messages

List Messages are ideal for presenting longer lists of options to customers.

Examples: Customer care or FAQ menu, take-out menu, list of nearby stores/locations, available reservation times.

List Messages support up to 10 options. Any additional options (marked with a yellow warning icon) will not be displayed to customers on WhatsApp.

  • List Messages do not currently support images. Even if a flow-builder adds an image to the node, it is not displayed to the customer on WhatsApp.

  • Formatting options are not supported in the Menu Header or Sub Header. It is only supported in the Body Text. The Menu Header is bolded automatically.

  • Sub Header is displayed in all caps and limited to 26 characters.

Reply Buttons

Reply Buttons are ideal when customers must select a quick response from a limited set of options.

Examples: Airtime recharge, changing personal details, reordering a previous order, choosing a payment method.

Button menus support up to 3 buttons. Any additional options (marked with a yellow warning icon) will not be displayed to end-users on WhatsApp.

Text on buttons is limited to 20 characters each.

  • Reply Buttons do support images. However:

    • If an image is added, the Menu Header text will not be displayed.

    • If no image is added, the Menu Header text will be displayed.

  • Formatting options are not supported in the Menu Header or Sub Header. It is supported in the Body Text. The Menu Header is bolded automatically.

Combining interactive lists and buttons in a flow

Example 1:

Example 2:

✅
Menu node
Multiple Choice Input node
Dynamic List
Configure Display Type
API reference documentation
List messages
Reply buttons

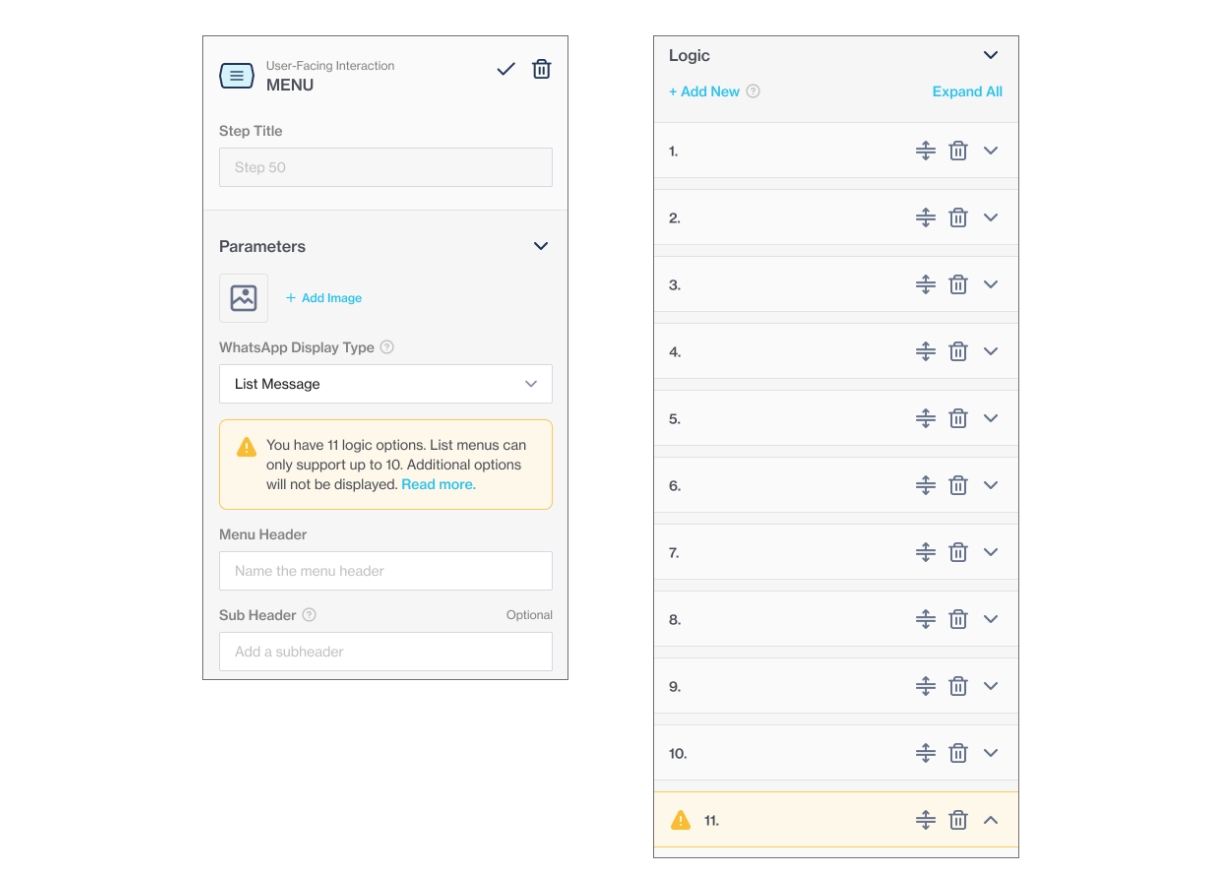

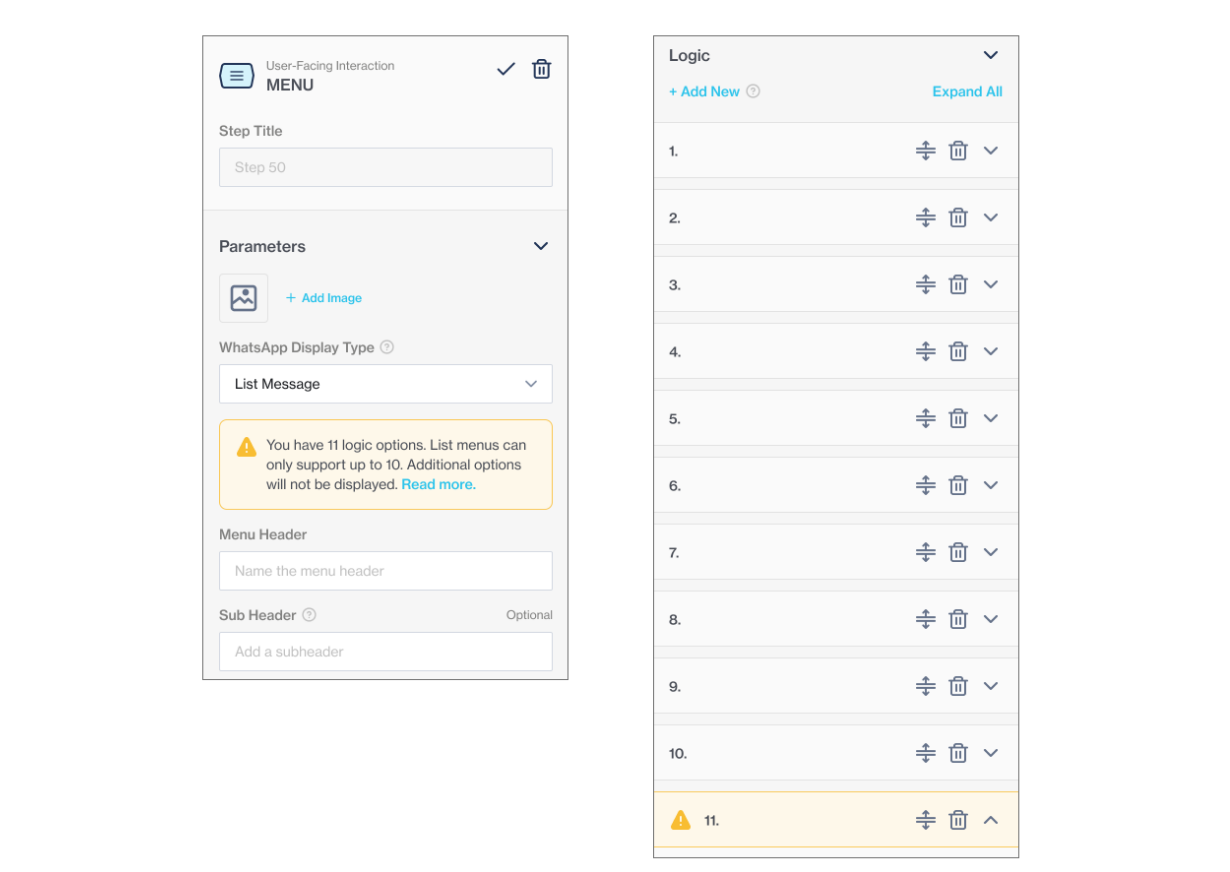

Warning when more than 10 options have been added to the node

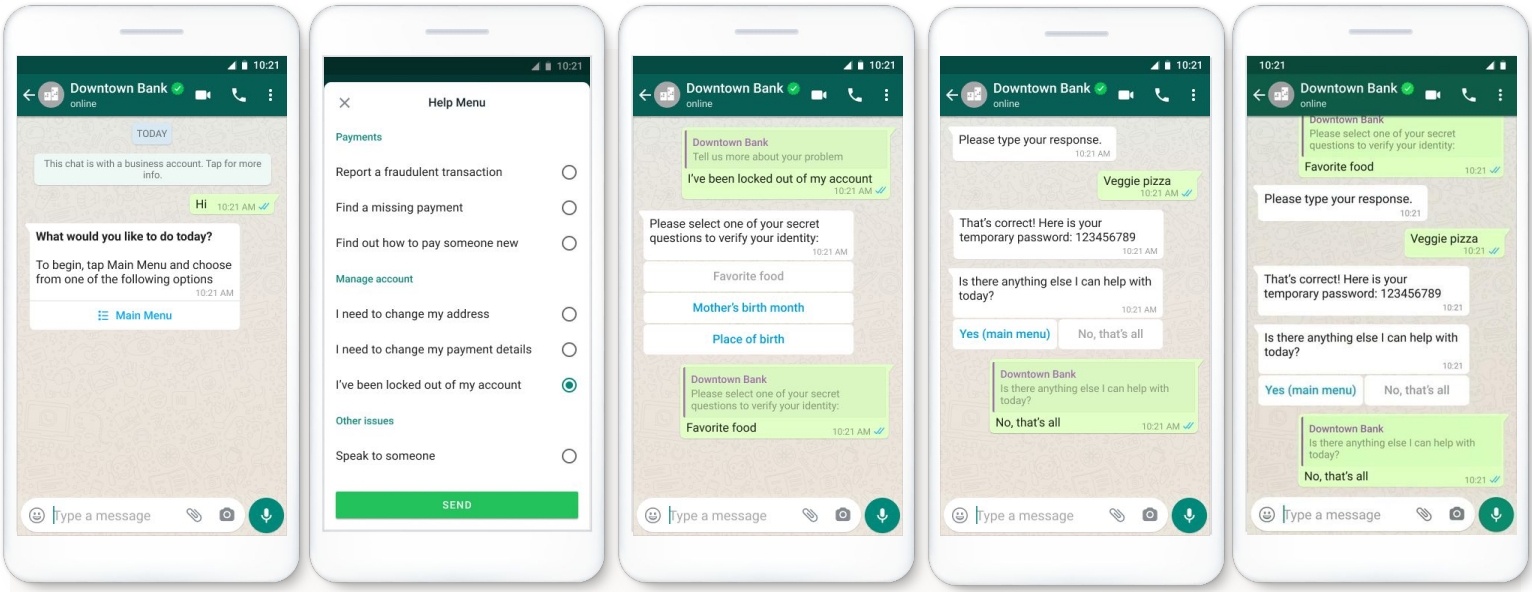

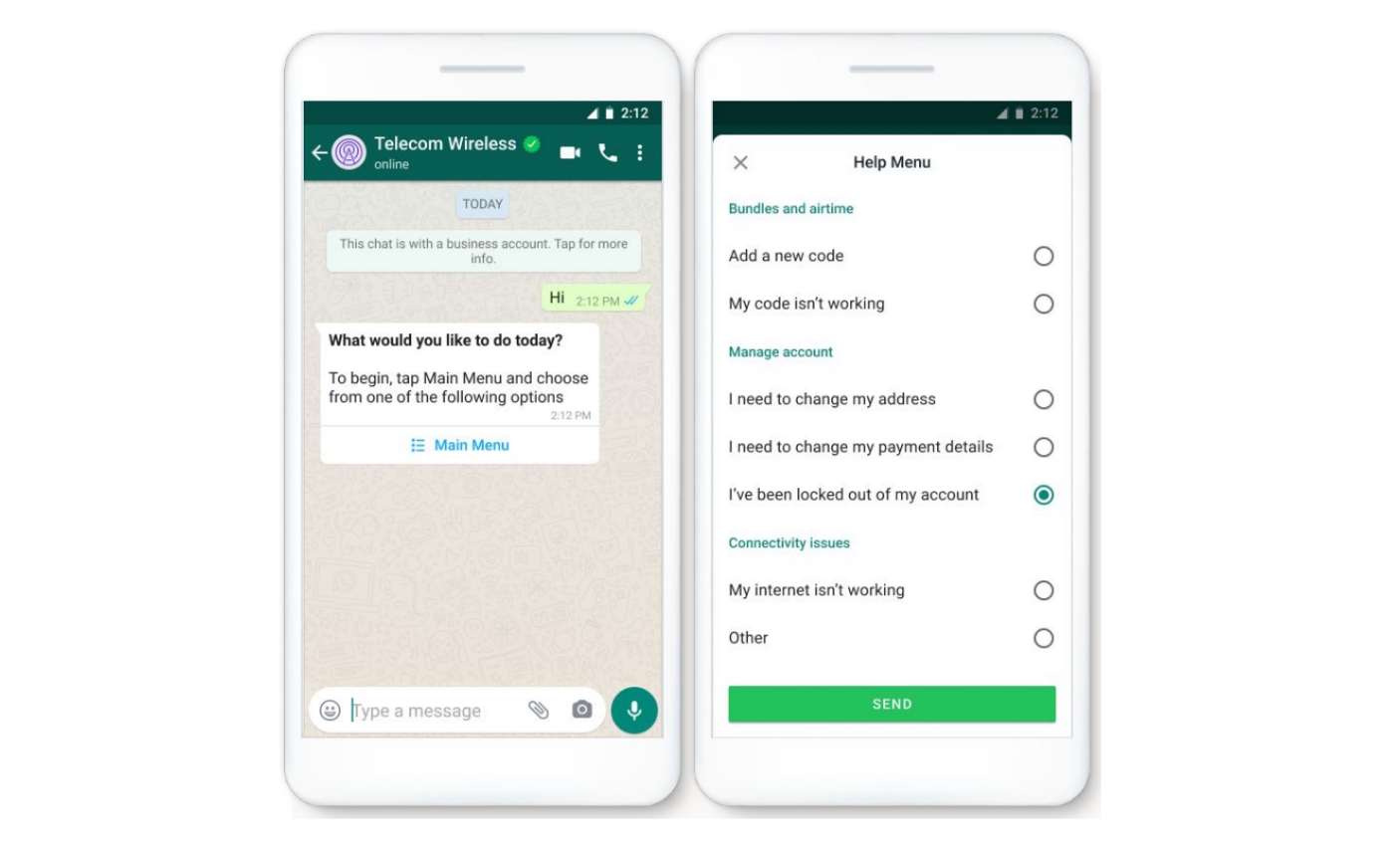

Example of an interactive message (list message) as displayed to customers on WhatsApp.

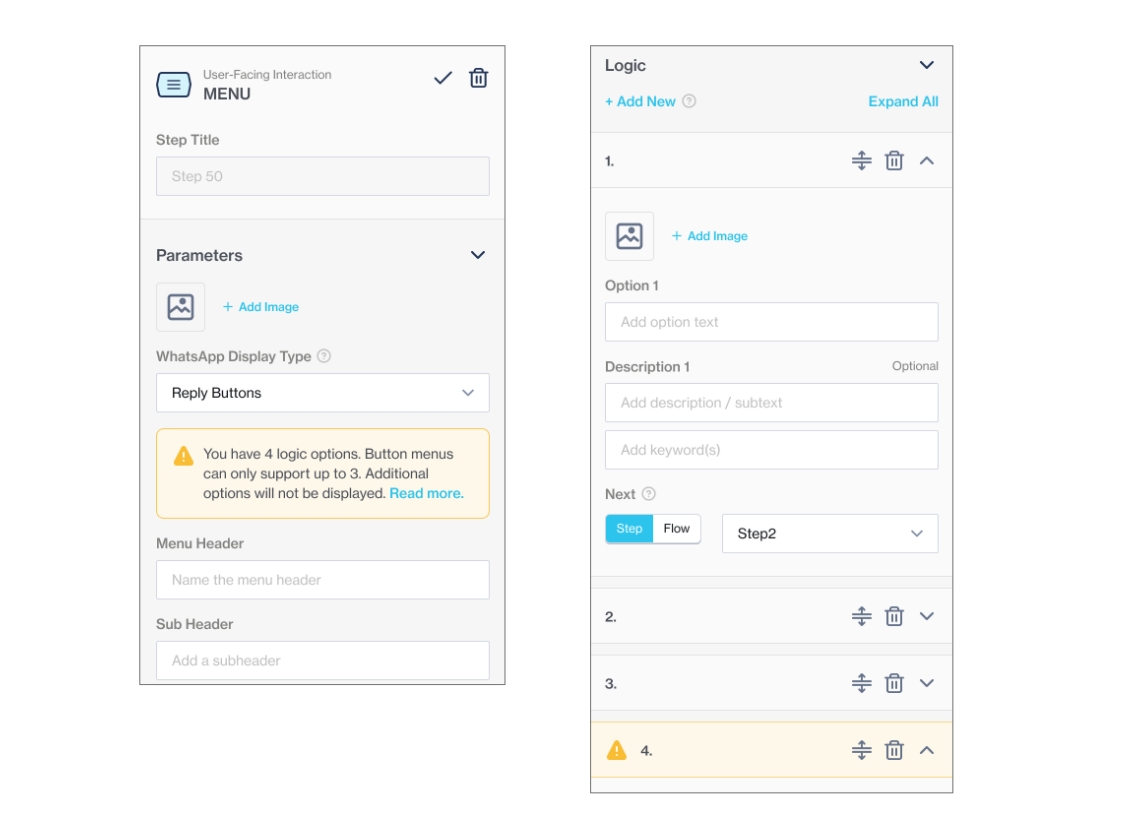

Warning when more than 3 options have been added to the button list.

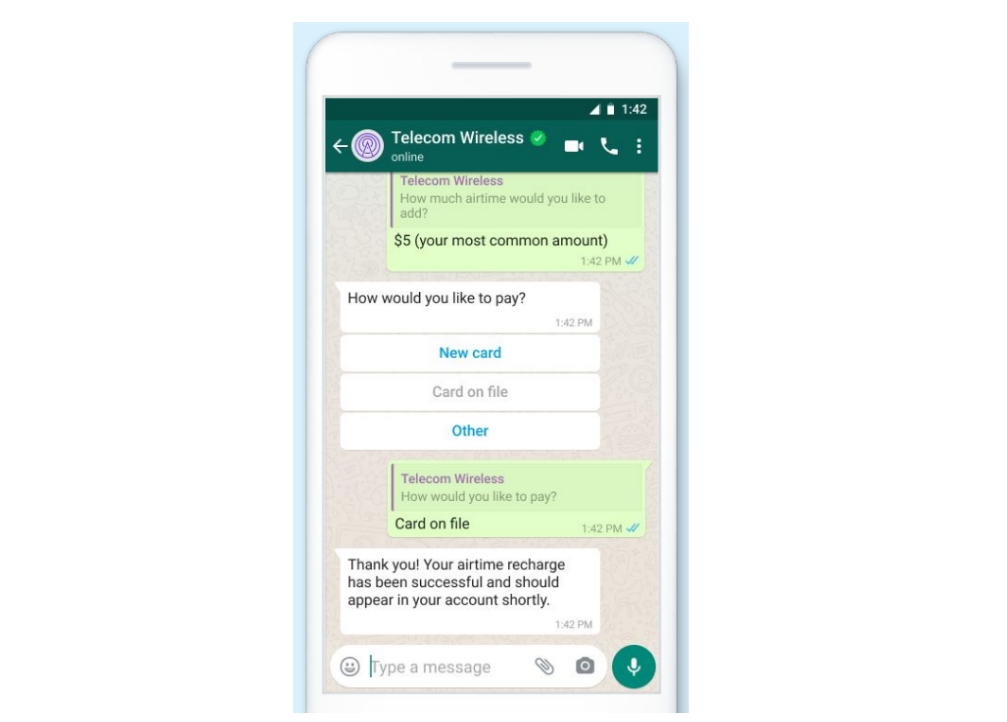

Example of an interactive message (reply buttons) as displayed to customers on WhatsApp

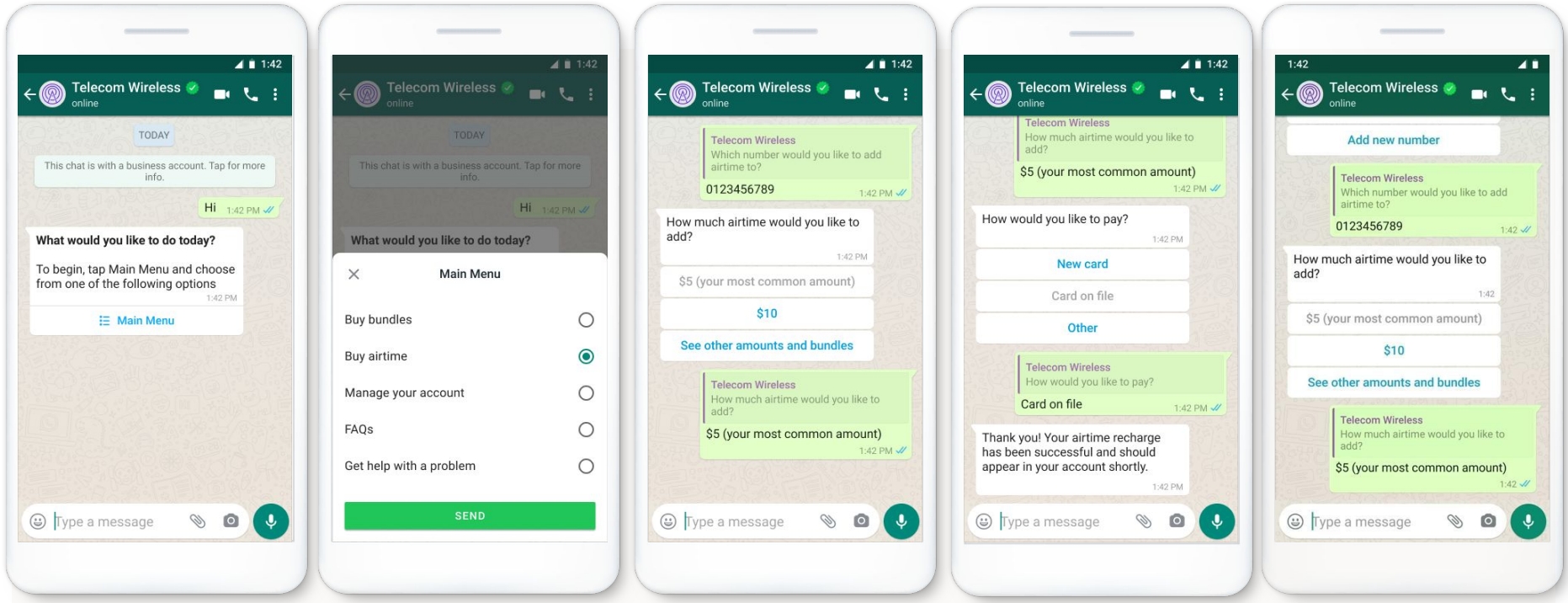

Telecoms: recharge airtime
Financial services: handle customer queries
