  1. Channel Capabilities
  2. Use Apple Messaging for Business with Chat Flow

Apple Interactive Messages

Was this helpful?

Below is an overview of all these interactive messages available on Apple Messages for Business and how you can use them to enrich your customer journeys.

Some are configured as , while others are configured as stand-alone .

Display Types

When configuring the or , you can select how you want to display the menu options to the customer using the modal.

For the Apple Messages for Business (AMB) channel, there are two types of interactive display types to select from:

List Picker

Display a longer list of options to your customers from which they can select one or more items to send with a reply. A list picker can also display information about each item such as product name, description, and image.

You can add as many options to your list as you wish, but always keep your customer's experience in mind - a long list means lots of scrolling!

Configure this on the Menu and Multiple Choice Input nodes as explained .

Quick Reply

Provide a simple way for your customers to respond with a single tap during an ongoing conversation. You can have between 2 - 5 options from which the customer can select one.

User-facing nodes

There are also several interactive message types that are configured as stand-alone user-facing nodes that you add to your workflow:

Time Picker

Allow your customers to schedule an appointment. Display available slots to your customers and allow them to pick the one that suits them best. This interactive message also displays conflicts found on the customer’s local calendar to help the customer make a better decision.

Rich Link

When a business sends a URL with an inline image or video to a customer, they receive a "Tap to Load Preview" message that they need to tap to load the content. With the Rich Link interactive message type, customers can preview content inline without having to load the preview first.

Form Message

Create rich, multipage interactive forms for customers to complete on their mobile devices. Some use cases include triage flows, CSAT surveys, and account creation or service sign-up.

Configure this on the Menu, Multiple Choice Input, and Dynamic List nodes as explained .

Learn how to configure the .

Learn how to configure the .

Learn how to configure the .

✅
here
Time Picker node
Rich Link node
Send Form node
Time Picker
Rich Link
Form Message
Menu node
Multiple Choice Input node
Configure Display Type
here
display types
workflow nodes
List Picker
Quick Reply

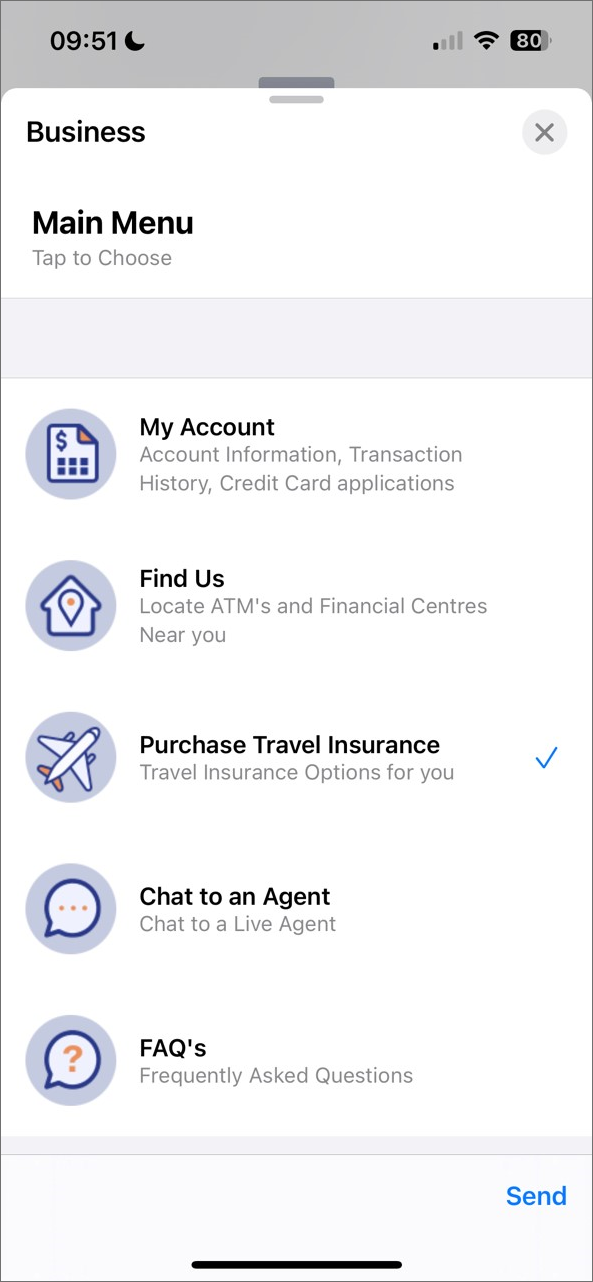

Example of a List Picker

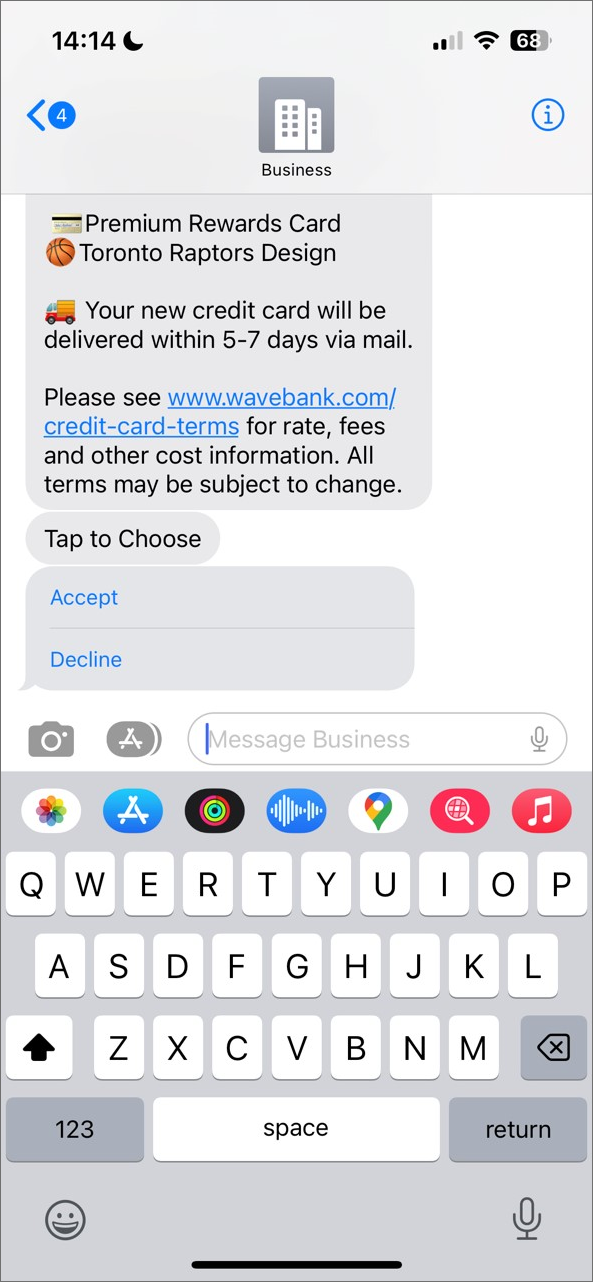

Example of a Quick Reply

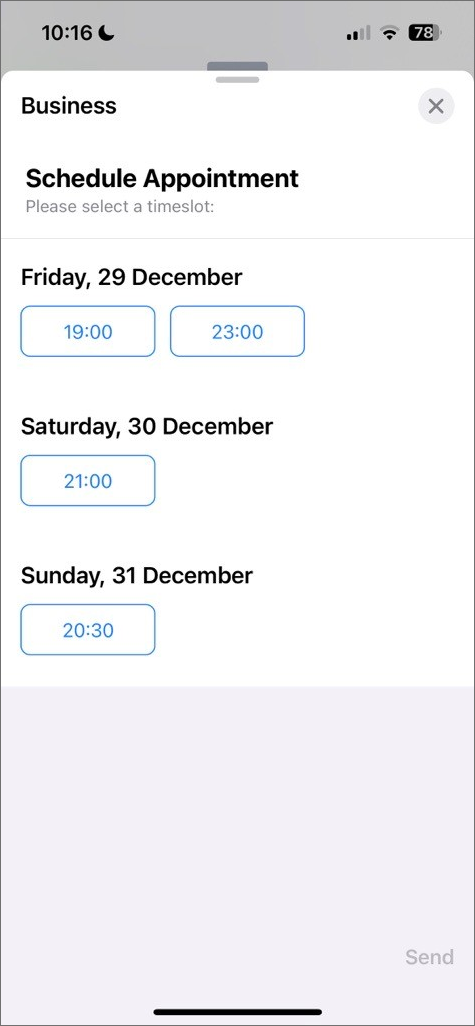

Example of a Time Picker

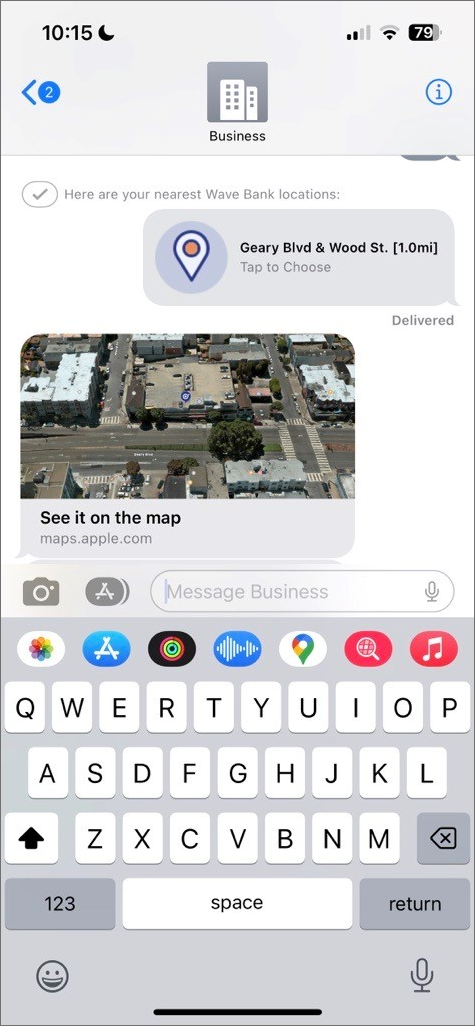

Example of a Rich Link
Example of a Send Form
Example of a Send Form (continued)
